852 Echo Sounder 6000 m
ULTRA-MINIATURE 6000 m ECHO SOUNDER
The Model 852 Digital Echo Sounder was designed for use with the smallest of ROV’s. For maximum flexibility, the unit requires approximately 1.5 Watts from 24 VDC, or optional 48 VDC. Serial communication is utilized, RS-485 or RS-232 at 115.2 kbps. The maximum operating range is 50 meters.
Underwater Hardware Specifications
Frequency
675 kHz or Optional 330 kHz
Transducer Beam Width
9° x 9° (20° conical for 330 kHz)
Range Resolution
20 mm
Min. Detectable Range
500 mm
Max. Operating Depth
6000 m
Max. Cable Length
1000 m on typical twisted shielded pair
Interface
RS-485 @ 115.2 kbps (RS-232 optional)
Connector
IE55-1204-BCR
External Trigger option comes with MKS(W)-307-BCR connector
Power Supply
22 – 30 VDC at less than 1.5 Watts
Optional 40 – 56 VDC
Dimensions

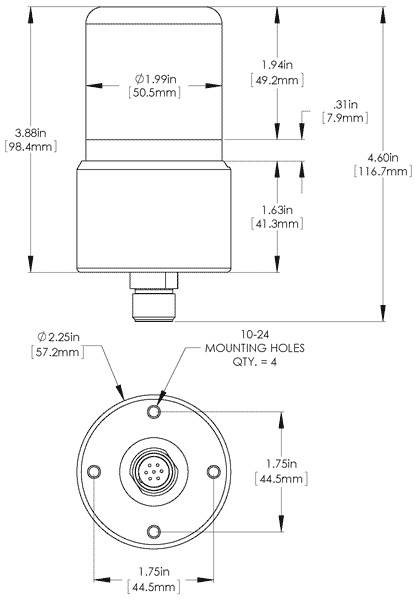

See drawing
Weight in Air
0.53 kg (1.2 lbs)
Weight in Water
~0.34 kg (~0.75 lbs)
Materials
6AL4V Titanium, PVC, Epoxy
Finish
Natural
Software Specifications
Win852.exe
v2.10
Windows™ Operating System
Windows™ XP, Vista, 7, 8, 10
Modes
Echosounder
Range Scales
5 m, 10 m, 20 m, 30 m, 40 m, 50 m
External Input
Depth, Heading, Turns
File Format
(filename).852
Recommended Minimum Computer Requirements
100 MHz Pentium
16 MB RAM
1 GB Hard Disk
800 x 600 x 256 colour graphics
Ordering Information
6000 m Unit
852-000-142
330 kHz
Option -001
RS-232
Option -006
40 – 56 VDC
Option -013
External Trigger
Option -023
